塑料管材生產線主要用于生產農用給排水、建筑給排水、電力、通信線纜敷設等方面和各種管徑、壁厚的塑料PVC管材。該機組由雛形(平行)雙螺桿擠出機、真空定徑箱、牽引機、切割機、翻料架等組成。螺桿擠出機及牽引機采 用交流變頻調速裝置。牽引機有二爪、三爪等牽引方式。可選用鋸片切割式或行星切割式,另帶計長儀裝置,機組 性能可靠、生產效率高。本公司可以根據用戶的要求,配備專用裝置后生產內壁螺旋管、內壁空心管和芯層發泡管 機組更換擠出機。行星切割機采用全自動電腦數控,具有操作方便,性能可靠等優點。

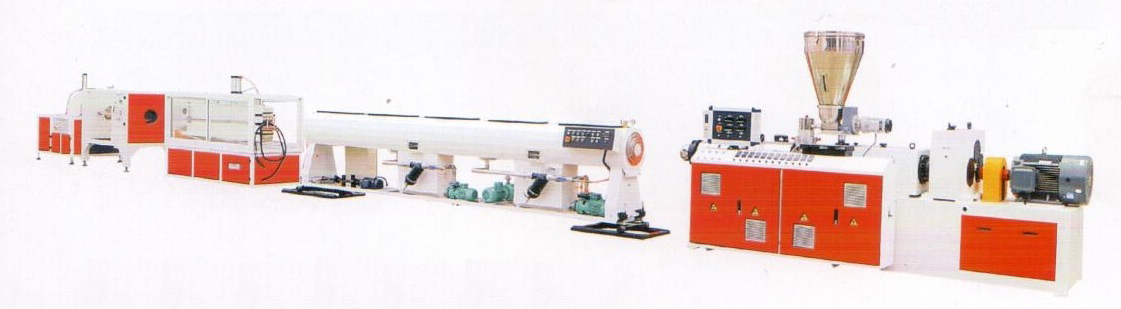

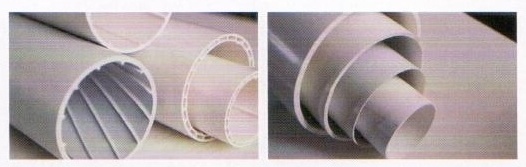

Plastic pipe production line is mainly used in producing of the plastic PVC pipes with various tube diameters and wall thickness in the aspects such as the agricultural,constructional,and cable laying etc.The unit is composed of the conical twin-screw extruder,vacuum forming tank,hau-off,cuter,stirring up rack etc.The extruder and the extractor adopt the AC frequency control device.The traction attached with measuring apparaus.The unit is reliable and hich production efficiency.This company may alocate the speciel installation for the manufacture of the inner wall spiral coll according to the client requirements.produce inner wall spiral pipe,inner wa holow and core layer bulpo pipe,etc.The planet-shaped cuting machine is fuly automatic computer control,it has such advantages of simple operation,relilable property,etc.It has reached world advanced level.
生產線型號 Type | 擠出機型號 Exturder Model | 主電機功率(KW)Motor Power(KW) | 擠出產量(T/24h) Capacity |
20-40 | 65/132 | 37 | 7 |
50-200 | 80/156 | 55 | 15 |
160-315 | 80/156 | 75 | 22 |
315-630 | 92/188 | 110 | 30 |
